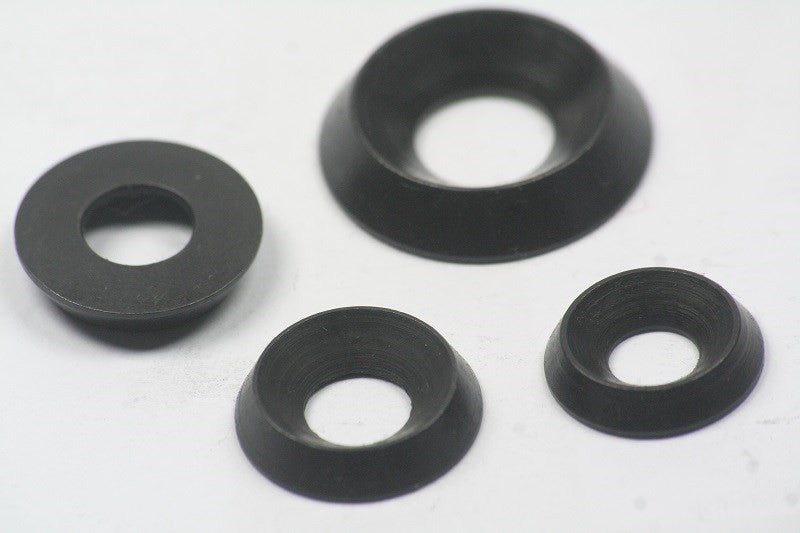

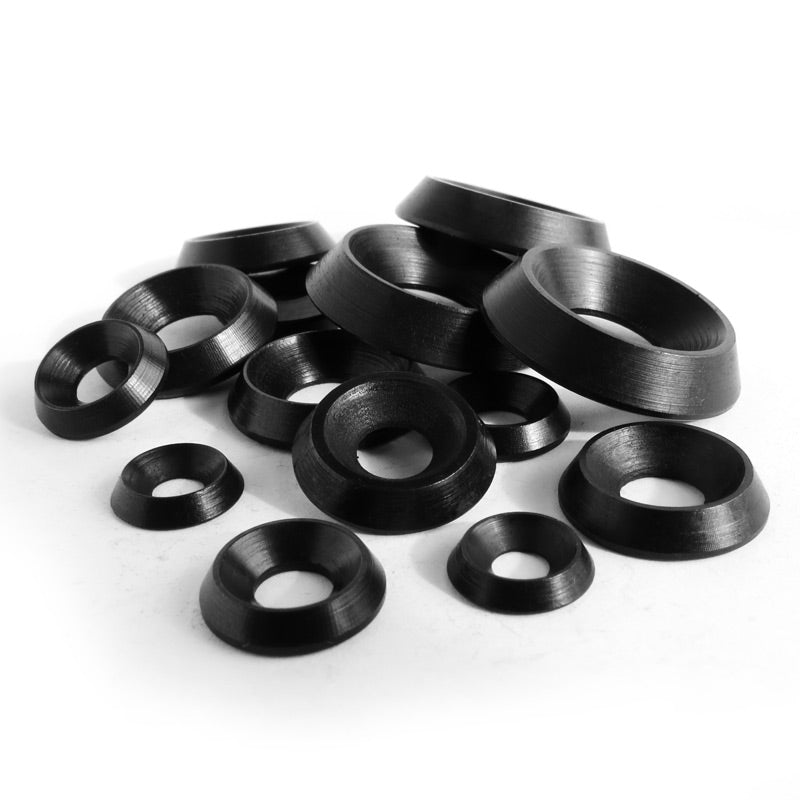

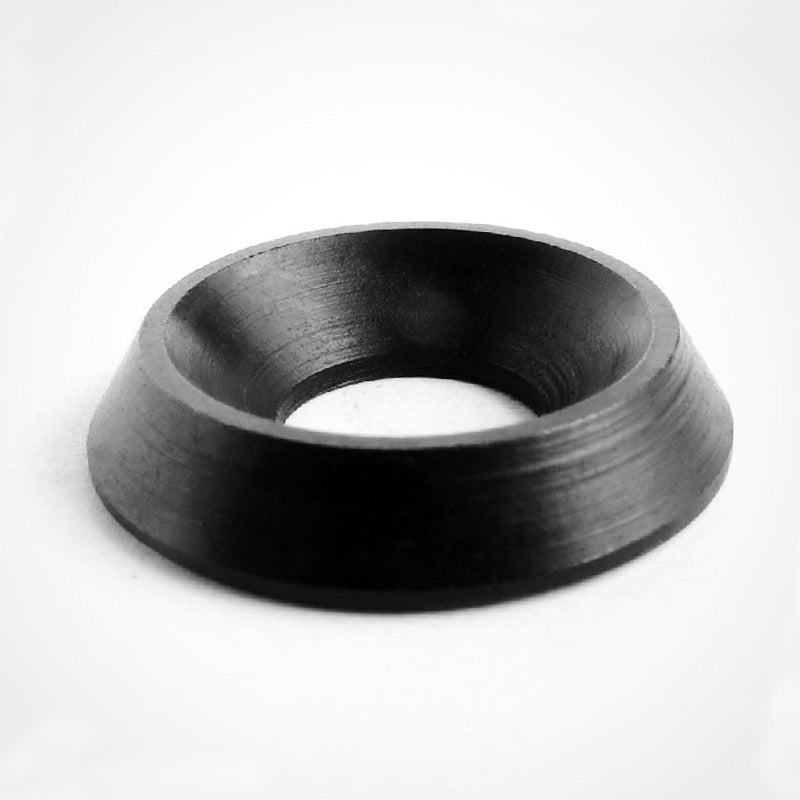

Black Stainless Steel Solid Machine Turned Cup Washers

carbolts.co.uk SKU: CUPWASHM3blkA2Q10web1

£3.51

Available Now!

Please select the size and pack quantity from the drop-down below.

Black Stainless Steel Solid Machine Turned Cup Washers

Black A2 Stainless Steel

Stainless Steel Cup Washers

 Internal Diameter d1 Outside Diameter (max) d2 d3 Thickness d4
M3 9mm 6.5mm 2mm 7mm
M4 11mm 8mm 2.5mm 8.6mm
M5 14mm 10mm 3mm 10.6mm
M6 16mm 12mm 3.5mm 12.8mm
M8 22mm 16mm 4.5mm 17mm
